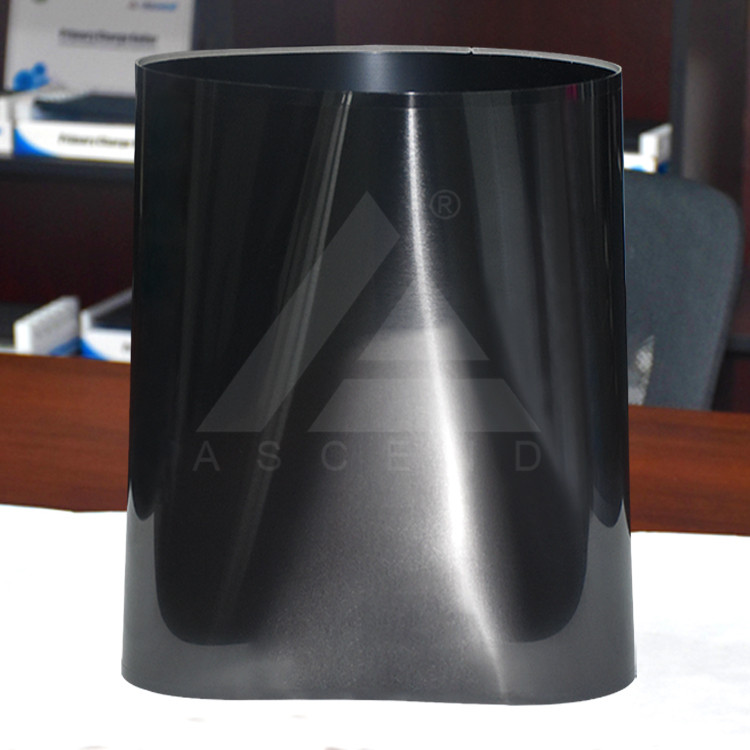

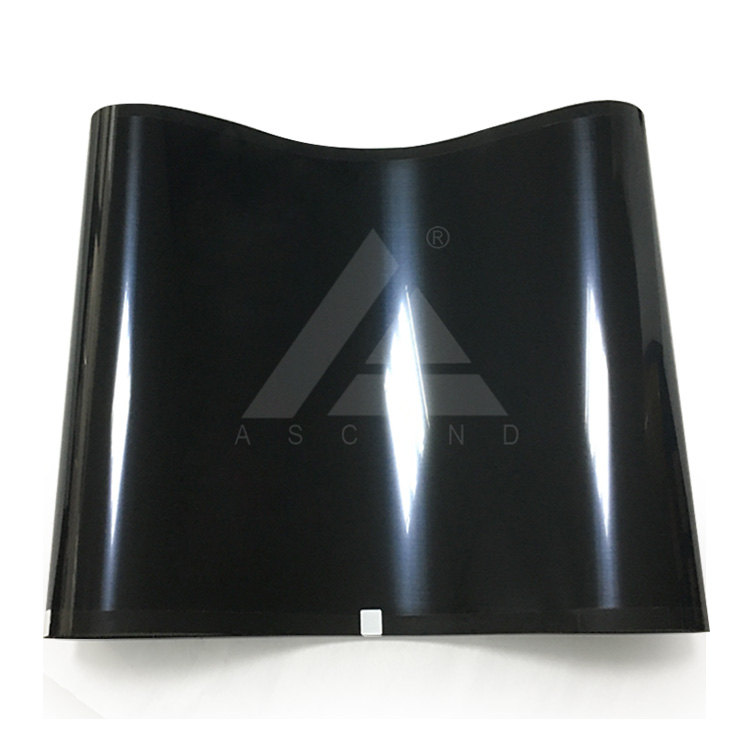

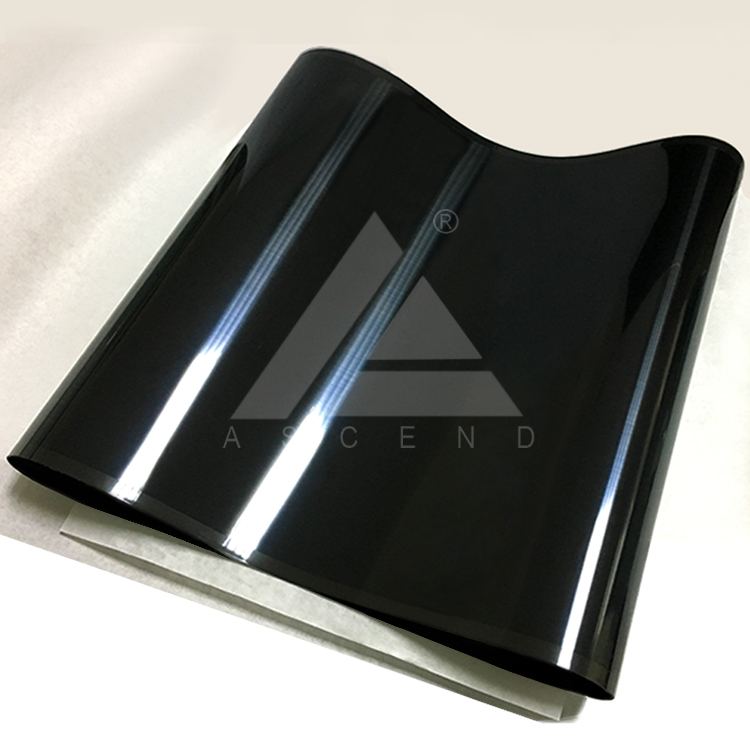

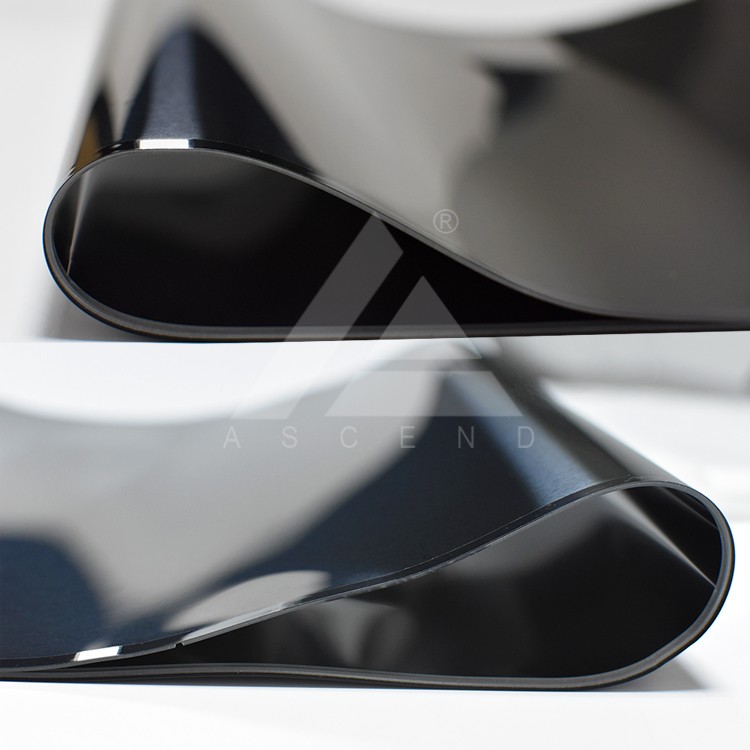

Transfer Belt

The latest generation of color laser printers have four toning stations (CMYK). Paper passes over all four stations in one cycle which enables higher print speeds.

This design requires precise positioning of the belt with respect to the paper during the toning cycle. This need defines the properties of a seamless belt for a perfect printout:

• Perfect, defect-free surface

• Tight tolerances of diameter, length, width and surface roughness

• Precisely defined electrical conductivity over the entire belt surface

ASCEND Transfer belts capabilities:

• Diameters: up to 1,000 mm

• Width: up to 600 mm

• Thickness: 50 - 100 µm (±10%)

• Electrical properties: 1E5 - 1E16 Ohm cm

• Roughness: < 1.0 Ra
